1 Phase 200VAC, 0.2kW to 2.2kW
3 Phase 200VAC, 0.2kW to 5.5kW
3 Phase 400VAC, 0.4kW to 5.5kW
The J1000 is a world-class compact variable frequency drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality.
Great things come in small packages!
- Call Us :-
- +91-98156-00392

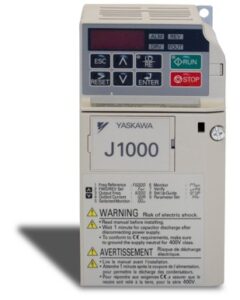

J1000- Compact V/F Control Drive
J1000- Compact V/F Control Drive
TECHNICAL SPECIFICATION
Key Features
- V/f control
- RoHS compliance
- Dual rating: Normal Duty and Heavy Duty
- Starting torque of 150% at 3 Hz
- Side-by-side installation due to patented hybrid heatsink
- Preferred parameter feature
- “One-touch” copy function with verify with 5-digit LED keypad
- Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
- 1 in 10,000 failure rate
- Swing PWM function to decrease noise at low carrier frequencies
- Pre-maintenance function
- Modbus communication
- Reduction in mechanical parts to increase MTBF
- Cooling fan replacement without tools
- MTBF: 28 years
- Short Circuit Current Rating (SCCR): 30kA rms symmetrical
- Built-in dynamic braking transistor
- Common programming with all other Yaskawa drives
Application / Industry
- Fan
- Pump
- Overhead shutter
- Conveyor
- Mixers
- Food & Beverage Machinery
- Shutter door – Open/close
- Agriculture Machineries
- Commercial Machineries
- For Healthcare Applications and Many more
