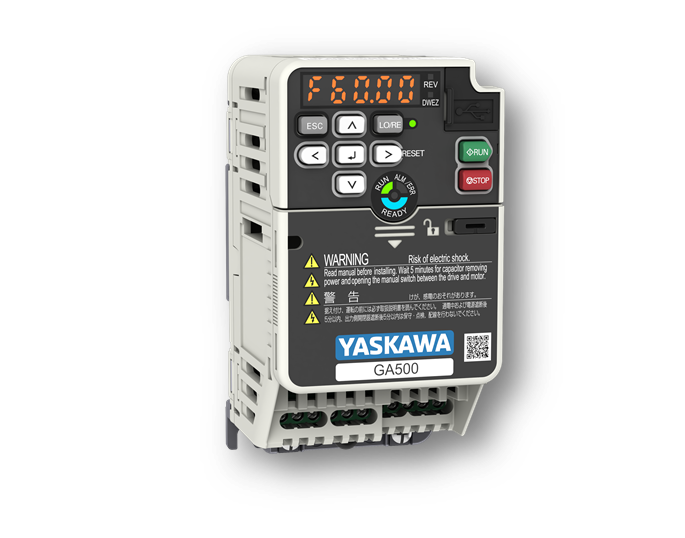

GA500- Compact Adv Vector Control Drive

GA500- Compact Adv Vector Control Drive

TECHNICAL SPECIFICATION

1 Phase 200VAC, 0.1 kW to 4kW
3 Phase 200VAC, 0.1 kW to 22kW
3 Phase 400VAC, 0.37 kW to 30kW
The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application. Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world-class quality, the GA500 is the drive you can count on for constant, high quality performance.



Key Features


- No power programming
- Intuitive keypad
- Conformal coated (IEC 60721-3-3: 3C2, 3S2)
- Current vector control, open loop
- Induction motor (IM), permanent magnet motor (PM), or synchronous reluctance motor operation
- IL3 (IEC 62061), PLe (ISO 13849-1) safety ratings
- Embedded Modbus communication
- Wide variety of communication options
- Variety of mounting methods (standard, IP20/UL, side-by-side, external heatsink, DIN rail)
- Embedded 24 Vdc power supply
- Maintenance monitors

- Cooling fan replacement without tools
- Optional LCD or Bluetooth keypad
- Global certifications (CE, UL, cUL, TUV, RCM)
- MTBF: 28 years
- Up to 30% smaller than the competition
- Short Circuit Current Rating (SCCR): 31 kA rms symmetrical
- Common programming with all other Yaskawa drives
- DriveWizard software for parameter management and start-up
- DriveWizard Mobile application for smartphones and tablets
- Function Block Diagram (FBD) programming via DriveWorksEZ™



Application / Industry


Heavy Duty Application

- Hoists
- Conveyor
- Compressor
- Commercial & Industrial Washing Machine
- Food & Beverage
- Packaging and Many more

Normal Duty Application

- HVAC
- Fan
- Pump and Many more
