ENGINEERED PANEL SOLUTIONS

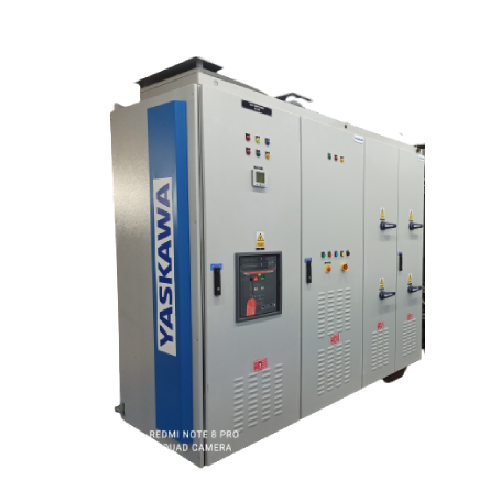

Engineered Panel Solutions

TECHNICAL SPECIFICATION

Ratings:
Engineered Panels for all rating of VFDs

- Designed as per IEC: 60439 & IEC: 60529 and tested as per IEC 61800-2, IEC 60146-1-1 (IEC: 60439 – Low Voltage Switchgear and Control Gear assemblies & IEC: 60529 – Ingress Protection for enclosures)
- Weekly project update to Customer
- Semi Modular panel construction – Flexibility on inter component assembly
- On time delivery (OTD) record for last 4 years
- Guaranteed Noise free solution by proper segregation/routing of Power, control & communication cables
- Best in class cooling practice
- Ensured 100% Quality assurance on each process
- Easy accessibility of control & power terminals – Field cable connections
- Stress-free accessibility/removal of VFD & other components during maintenance activity
- Proper component arrangements



Strength & Facility


Energy Recovery Spplications

1.) 9000 sq.ft Panel testing area
2.) Environment: Climatic control & dust free
3.) Experienced team
4.) Testing capacity: 60 Panels at single time
5.) AutoCAD 2018 & Solid works -3D software for the Mechanical drawing preparation
6.) ECAD software for the Electrical drawing preparation
7.) Test facility for both 690V & 415V system

Design & Manufacturing of VFD Panels are compliance to below IECs

1.) IEC 60529 for IP 42 enclosure protection
2.) IEC 60439 for Low Voltage Switchgear and Control Gear assemblies & partial compliance to IEC 61439
3.) IEC: 61800-5-1 – Safety requirements — Electrical, thermal and energy
4.) IEC: 61800-2; 2015: Adjustable Speed Electrical Power Drive Systems
IP00
IP42
IP54
IP55
