Σ-7 products set a new industry standard in servo capability redefining the possibilities in motion automation. – Σ-7 is engineered to bring new responsiveness, reliability and effectiveness to the automation that powers your productivity.
SERVOPACKs:-
- One amplifier for Linear, Rotary and Direct Drive motors
- Features with IEC 61508, SIL 3 Safe Torque Off
- Advanced safety functions SS1, SS2, SLS
- Speed frequency response: 3.1 kHz
- Network compatibility models with MECHATROLINK-II, III & IV, EtherCAT and analog/pulse Train interfaces
- Alarm diagnostic function: Presumes possible causes of the alarm and immediately displays suggested corrective actions
- Improved Tuning-less Mode delivers reliable stability with inertia ratios up to 30:1 Advanced Autotuning automatically adjusts nearly 20 gain and filter parameters to cancel vibration, rippling, friction and resonance.
- Vibration suppression, anti- resonance compensation, friction model compensation and ripple compensation improves machine speed, accuracy and smoothness.
- Regerative Power Sharing is available for dual-axis SERVOPACKs or DC-Bus connections with single-axis SERVOPACKs
- Call Us :-
- +91-98156-00392

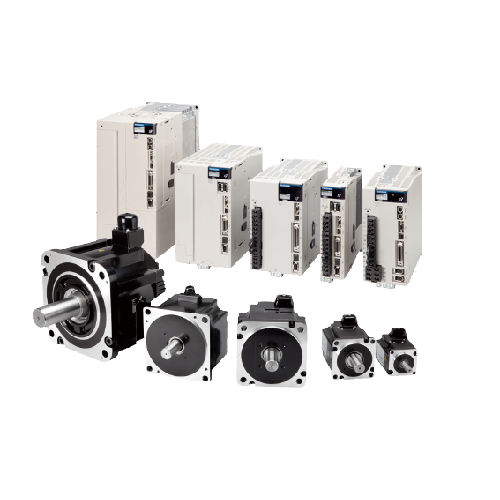

AC Servo Drives
200V Σ-VII Servo Series
TECHNICAL SPECIFICATION
Servomotors
1.) 24-bit absolute encoder feedback (16,777,216 pulses/rev) for 16x better resolution than the industry-leading Sigma-5
2.) Maximum torque: 350% (small capacity)
3.) 20% Reduction in motor size and motor heating, for better efficiency and easier implementation
4.) At higher temperature environments (40oC ambient), at higher altitudes (>2,000 meters) or in harsh motor environments (IP67 rated)
5.) Σ-7 SERVOPACKs and Servomotors are equipped with temperature sensors that can directly monitor temperatures of machines and detect abnormalities to prevent failures. Real-time temperatures can be viewed on a display by using Machine Controllers
6.) SigmaWin+ Software tool for effortless parameterization and advanced monitor functions
Application / Industry
1.) Gantry/Laser Cutting
2.) Machine
3.) Packaging
4.) Conveyor
5.) Semiconductor manufacturing
6.) Machine Tools
7.) Food & Beverage
8.) Printing Machines
9.) Textiles
10.) Medical Devices and Many More

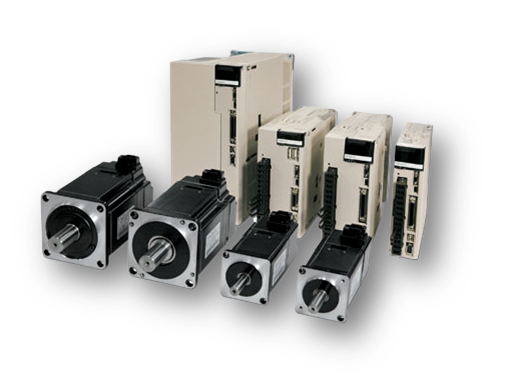

400V Σ-V (Servo Series)
TECHNICAL SPECIFICATION
Σ -V products with 400V Class have Advanced technology makes possible a host of safety standards compliance with key international standards, a diverse motor line-up, compact size, high speed and simple maintenance to operate your machinery faster and with higher precision than ever!
SERVOPACKS
400V Class of Servo System for Linear and Rotary Servomotors
1.) Features with IEC 61508, SIL 2 Safe Torque Off
2.) Advanced safety functions SS1, SS2, SLS
3. Speed frequency response: 1.6 kHz
4.) Network compatibility models with MECHATROLINK-II, III, EtherCAT and analog/pulse Train interfaces
5.) Improved Tuning-less Mode delivers reliable stability with inertia ratios up to 30:1
6.) Advanced Autotuning automatically adjusts nearly 20 gain and filter parameters to cancel vibration, rippling, friction and resonance.
7.) Alarm diagnostic function: Presumes possible causes of the alarm and immediately displays suggested corrective actions
8.) Vibration suppression, anti- resonance compensation, friction model compensation and ripple compensation improves machine speed, accuracy and smoothness.
Applications / Industry
1.) Gantry
2.) Packaging
3.) Conveyor
4.) Semiconductor manufacturing
5.) Machine Tools
6.) Food & Beverage
7.) Printing Machines
8.) Textiles
9.) Medical Devices and Many More
